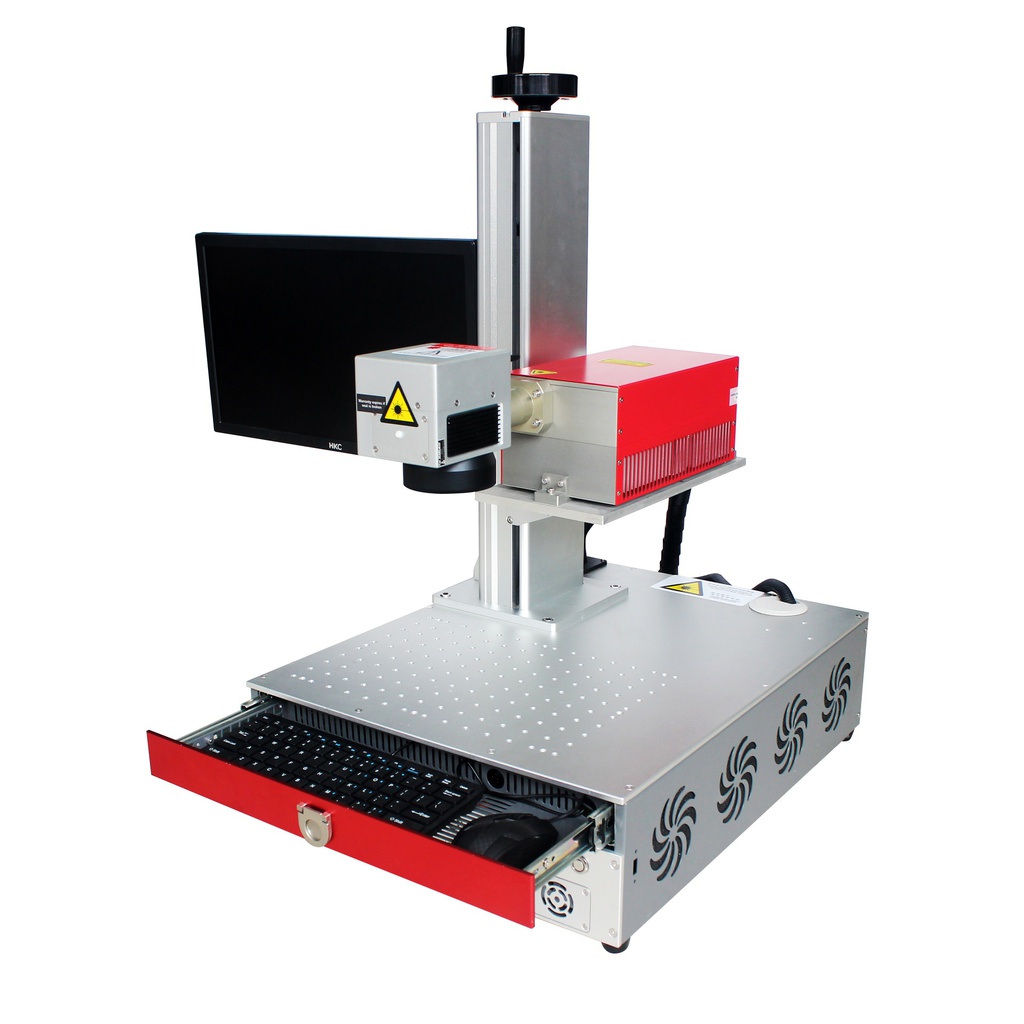

FM-UVD UV-Laser Desktop

Request Quote
  • Cooling Type
  • Laser Source
  • Laser Power
  • Integrated PC

Diese Kombination existiert nicht.

Desktop Version
UV lasers for marking heat sensitive materials, including a range of plastics, from HDPE and silicone to polycarbonate and polyethylene (model with highly safe metal housing)

Share

Well-suited for marking heat-sensitive materials, including a number of plastics, from HDPE and silicone to polycarbonate and polyethylene. With a wavelength of only 355 nm, this UV laser can create ultra-fine marks with high contrast. Medical device manufacturers like UV lasers for their ability to make hygienic marks, and automotive companies can use them for a wide variety of parts.

Marking using these lasers is called "Cold Marking" which refers to how they can perform marking and processing with minimal heat damage due to their incredibly high absorption rate on a variety of materials. UV laser marking is ideal for applications that require high contrast or minimal product damage.

Working Area:170x170mm (opt. 300x300mm)Speed:7'000 mm/s
Laser-Typw:UV-Laser JPT 3W/5WLaser-Lifetime:n.a. Hours(1)
Laser-Power:3W / 5WSoftware:EZCad2
Wavelenght:
Frequency:
Pulse-Width:
M2:		355nm
20-200kHz
<10ns@40kHz
<=1.2		Supported graphic formats:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc.
Minimal Character Height:<=0.06mmInterface(s):USB

Product Size:

n.a. (TxBxH)Cooling:
Air or Water-Cooling
Weight:65kgCertifications:CE-Certification
Package Size:690x590x560mm (TxBxH)Integrated PC (Optional):
Intel Atom, 4GB Ram, 64GB SSD, 1080HD, 13" Monitor, Windows 10 genuine
(1) under proper operative conditions

Applications/Materials

Glass, electronic components, auto parts, plastics (ABS, HDPE, PC, PET, PP, PU, etc.), some metals, textiles, and other heat-sensitive materials.

Specification for FM-UVD UV-Laser Desktop

Cooling
Cooling Type Water or Air
Uncategorized
Laser Source JPT or RHF
Laser Power 3W or 5W or 10W
Integrated PC without integrated PC or with integrated PC
