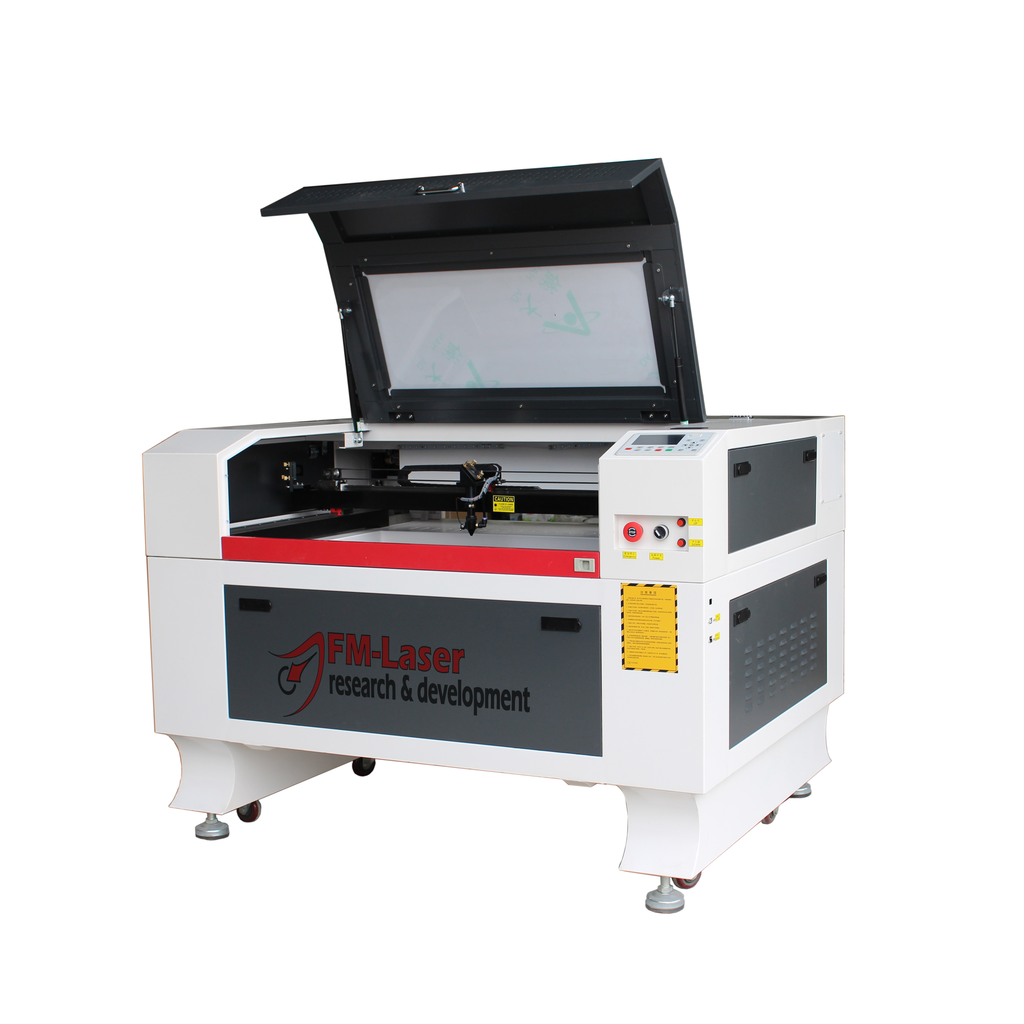

FM-9060-Pro Laser CO2

Request Quote
  • Laser Power
  • Working Bed

Diese Kombination existiert nicht.

9060 CO2 Laser 110W - New Model!

1) 900x600mm working area with honeycomb and blades (Double Working bed)
2) Ruida 6445x
3) 110W laser tube (RECI, YongLi, SPT) (optional up to 150W)
4) Auto Focus
5) Electric Z axis controlled by RD6445x
6) 008 high pressure air compressor
7) Connection for rotating device with extra embedded driver
8) CW3000 included
9) High quality lenses and mirrors - II-VI import from USA, focusing lens diameter 20mm, mirror diameter 25mm
10) Big Stepper motors Nema57 (1.2° Resolution)
11) Cover protection sensor
12) Z-axis up/bottom sensors
13) Water flow sensor
Robust Construction, ideal for laser engraving and precise cutting.

Fast flatbed laser engraver

Made for productivity

Time is money - the time per laser job is therefore crucial for your business success. Increase your production capacities with an engraving speed of 800 mm / s and a laser power of up to 90 watts.

Thanks to the RUIDA™ motion control, cutting applications can be implemented up to four times faster than with comparable laser engraving machines on the market.

The machine has an automatic height adjustment of the work table of 35 cm, the functions "Air Assist" and "Red Dot".

Work table can be chosen between honeycomb bed or blade bed.

The machine works on high quality linear rails, which ensures high repeatability and maintains accuracy over time..

Thanks to the RUIDA™ control, you can work directly on the machine without a computer.

The high quality RECI laser tube can last up to 4 times longer than the normal cheaper tubes which are installed in many cheaper devices available on the market.

The optics of the machine are of the highest quality and equipped with ZnSe USA lenses..

BEWARE / IMPORTANT

You can find machines on Amazon that look like ours and that are actually manufactured by our supplier. At FM-Laser, however, we have customized our machines and equipped with high-quality parts, including: RECI laser (vs. EFR), RUIDA Controller (vs. TopWisdom), Schac linear rails (vs. unknown), motorized Z-axis, air support , Autofocus.

Thanks to this, we guarantee a higher quality and a longer lifespan!

Beware of cheap machines!

Power:
90W bis 140WCutting Speed:
500mm/s
Lasertype:
CO2Cutting Depth:
0-15mm (material dependent)
Working Area:
900x600mmWorking Range:
10-40°C
Product Size:
without Bottom-Bracket:

1585x1030x985mm (BxTxH)
1585x1030x765mm (BxTxH)
Max Laserhead Height:
22.5cm
Product Weight:
170kgPosition Precision:
0.01mm
Packing Size / Weight:
1480x960x1145mm (WxLxH) /220kg
Laser Lifetime:
4000-4500 hours (1)
Certifications:CE, RoHS, FCCInterfaces:
USB / Ethernet
(1) by correct use

Cutting

  • Rubber. Plastic, Plexiglay, Acrylic, Fabrics, leather and leather-like materials, wood

Engraving

  • all non-metallic materials, anodyzed aluminium, coated metals, stones

Specification for FM-9060-Pro Laser CO2

Laser Power 90W or 110W or 130W
Working Bed Honeycomb or Blade or Double Platform
